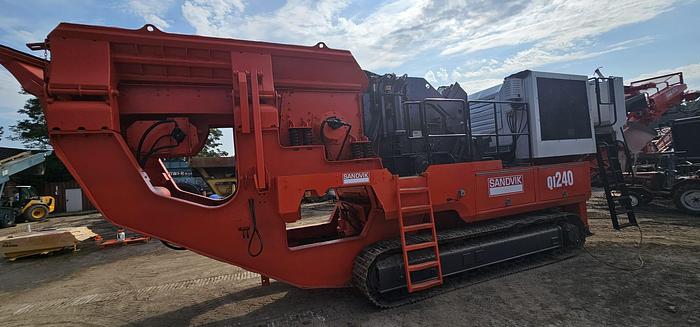

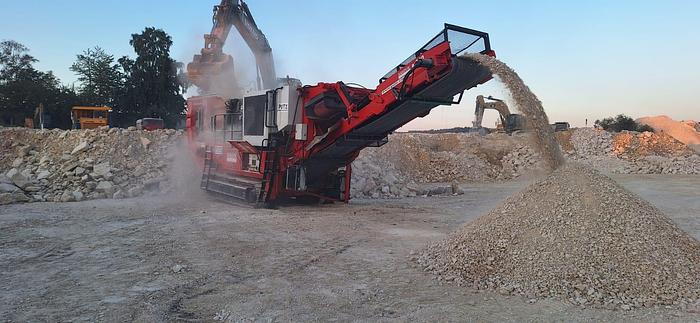

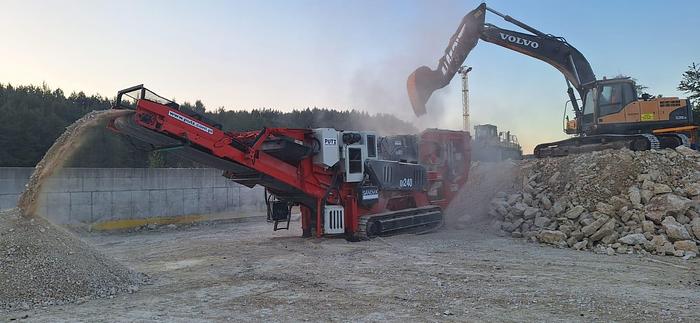

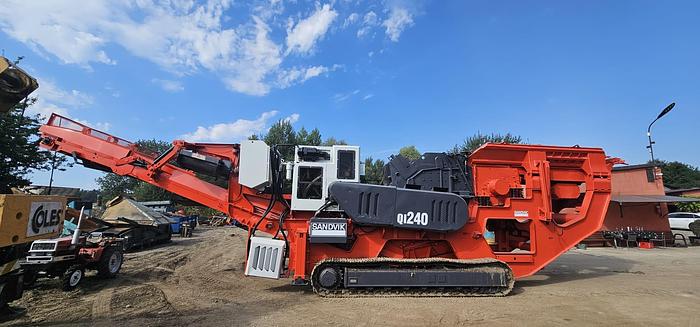

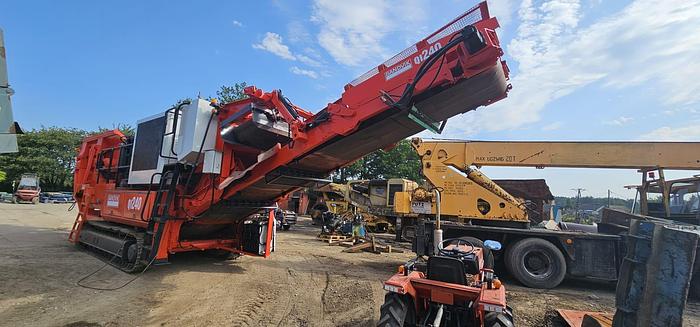

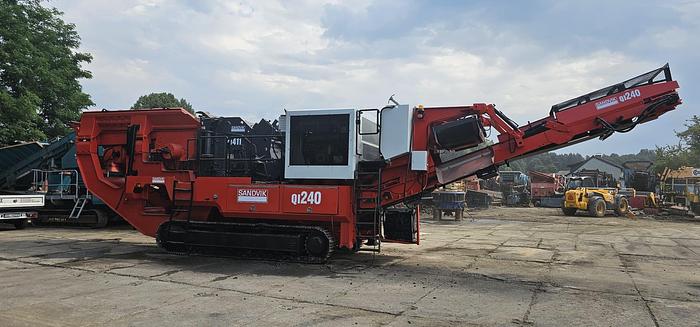

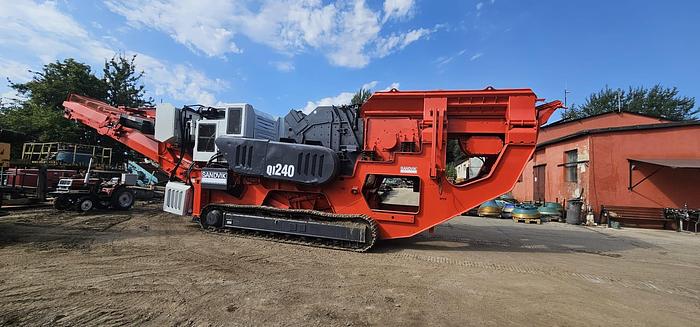

Sandvik QI 240

Sandvik QI 240 impact crusher for sale

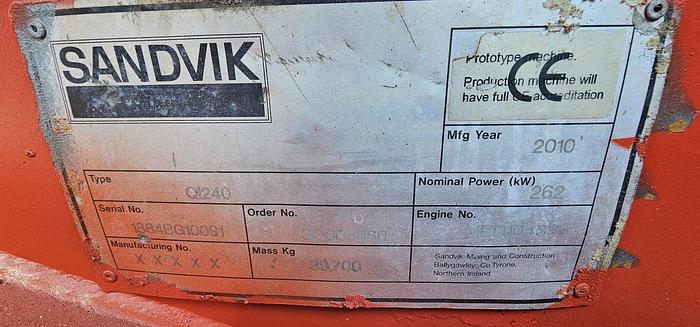

year of manufacture is 2010

Powered by a CAT engine

Impact Crusher Type: PrisecTM Horizontal Shaft Impact (HSI) crusher.

Maximum Feed Size: Up to 400mm (15.7 inches).

Rotor Diameter: 860mm (34 inches).

Rotor Speed Range: 600 - 850 rpm.

Capacity: Up to 250 tonnes per hour (275 US tph) depending on the application and material.

Engine: CAT C9.3 261 kW (350 hp) Tier 4 Final / Stage V engine for efficient and powerful performance.

Transport Dimensions:

Length: 14.05m (46' 1")

Width: 2.85m (9' 4")

Height: 3.47m (11' 5")

Weight: Approximately 39,000 kg (85,980 lbs)

Hydraulic System: Hydraulic assisted crusher opening for easy maintenance and access to wear parts.

Feeder: Hydraulically folding hopper walls and vibrating grizzly feeder with adjustable spacing for optimal material feed.

Pre-Screening System: Optional single-deck pre-screening unit for efficient scalping and reduction of fines before entering the crusher.

Material Flow and Handling: Hydraulic raise and lower conveyor system for easy transport and efficient stockpiling.

Rotor and Blow Bars: Four-bar rotor with interchangeable blow bars for versatile applications and extended wear life.

Adjustable Curtain Settings: Adjustable curtain settings to control material flow and product size.

Control System: User-friendly control panel for monitoring machine performance and adjusting parameters.

Main Conveyor Belt Width: 1000mm (39.4 inches) wide for efficient material transfer.

Applications: Suitable for a variety of applications, including asphalt recycling, concrete recycling, and aggregate production.

Service and Maintenance: Easy access to key components for routine maintenance and servicing.
